AB PULSe 4K (1x tuner DVB-S2X + 1x tuner DVB-T2/C)

AB PULSe 4K (1x tuner DVB-S2X + 1x tuner DVB-T2/C)

PULSe 4K (version: 2x DVB-S2X tuner) is a receiver with UHD resolution and operating system ENIGMA 2. Beautiful picture in 4K resolution is a matter of course, as well as picture standards HDR / HDR10 and HLG. A quad-core processor with 15,000 DMIPS, 8GB FLASH memory and 2GB DDR4 RAM will take care of performance and fast reactions. The receiver includes a built-in DVB-S2X tuner and a slot for a second Plug & Play DVB-S2X satellite tuner or a DVB-C / T2 terrestrial / cable tuner, so it is ready for satellite, terrestrial and cable broadcasts by various operators.

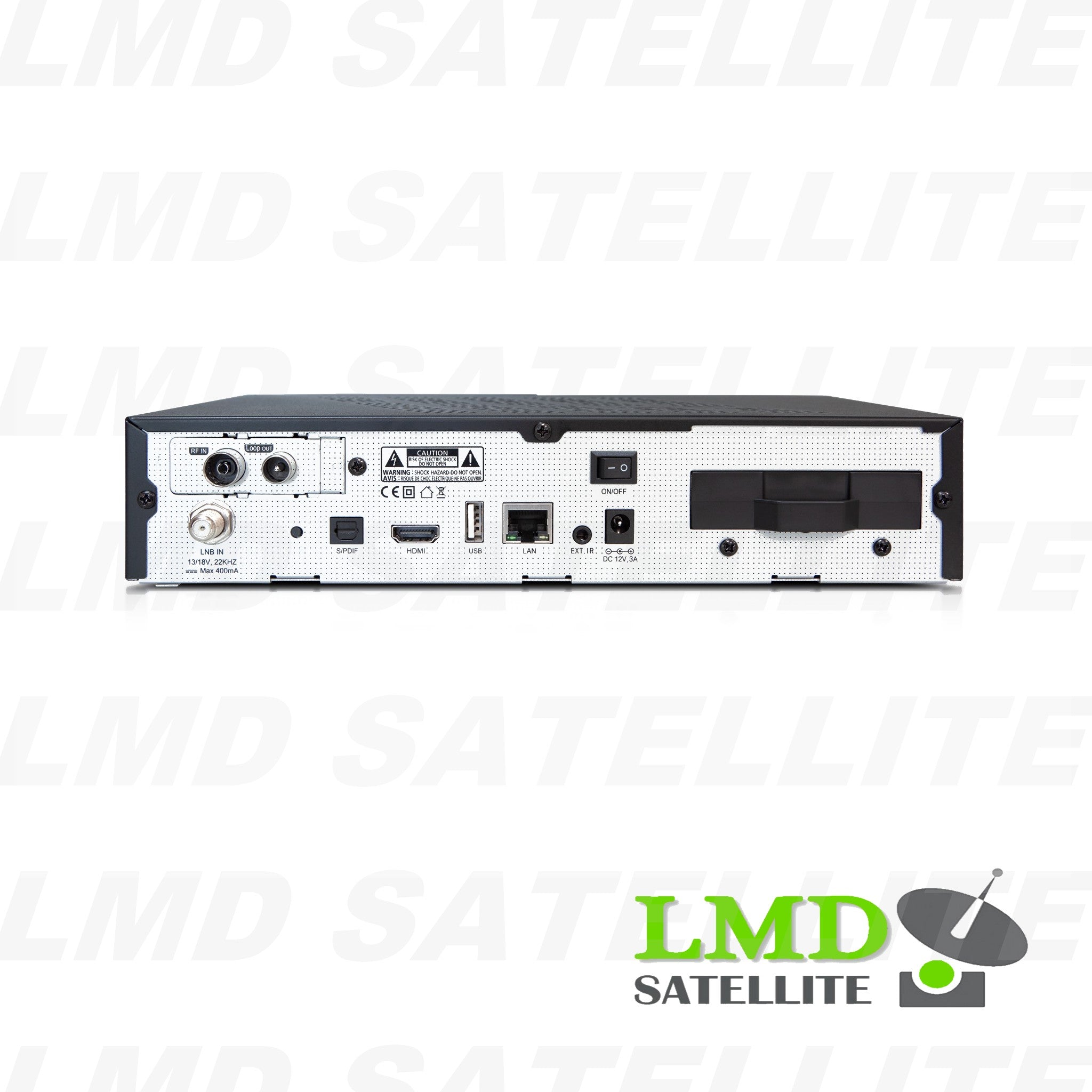

The elegant design of the receiver will fit into any living room. There is a 7-segment LED display on the front panel. Behind the door you will find 1x card reader, 2x slot for CI module, 1x USB 2.0 and 1x slot for microSD card, which you can use as internal storage for your recordings. On the rear panel there is a built-in satellite tuner DVB-S2X and a slot for a second Plug & Play tuner, which can be equipped with a satellite or terrestrial / cable tuner. In addition to using the microSD card as internal storage, you can easily insert a 2.5 "HDD into the receiver via a drawer system. From the connector on the rear panel you will find S / PDIF optical digital audio output, USB 2.0, Ethernet RJ45, IR extender for IR eye connection included in the receiver package), switch and input for external DC power supply 12V-3A.

Why PULS 4K

PULSe 4K will provide you with a beautiful picture in UHD quality with the popular operating system Enigma 2, which you will also know from other receivers in the HIGH-END class.

Take advantage of the possibilities that this operating system offers you with plugins for a better TV viewing experience. Customize your device's environment to suit your preferences, and watching TV takes on a new dimension.

A big advantage of this receiver is the simultaneous decoding of two CI modules, or the decoding of two programs from the CI module in real time, which everyone will appreciate when watching a live broadcast and at the same time recording another program at the same time.

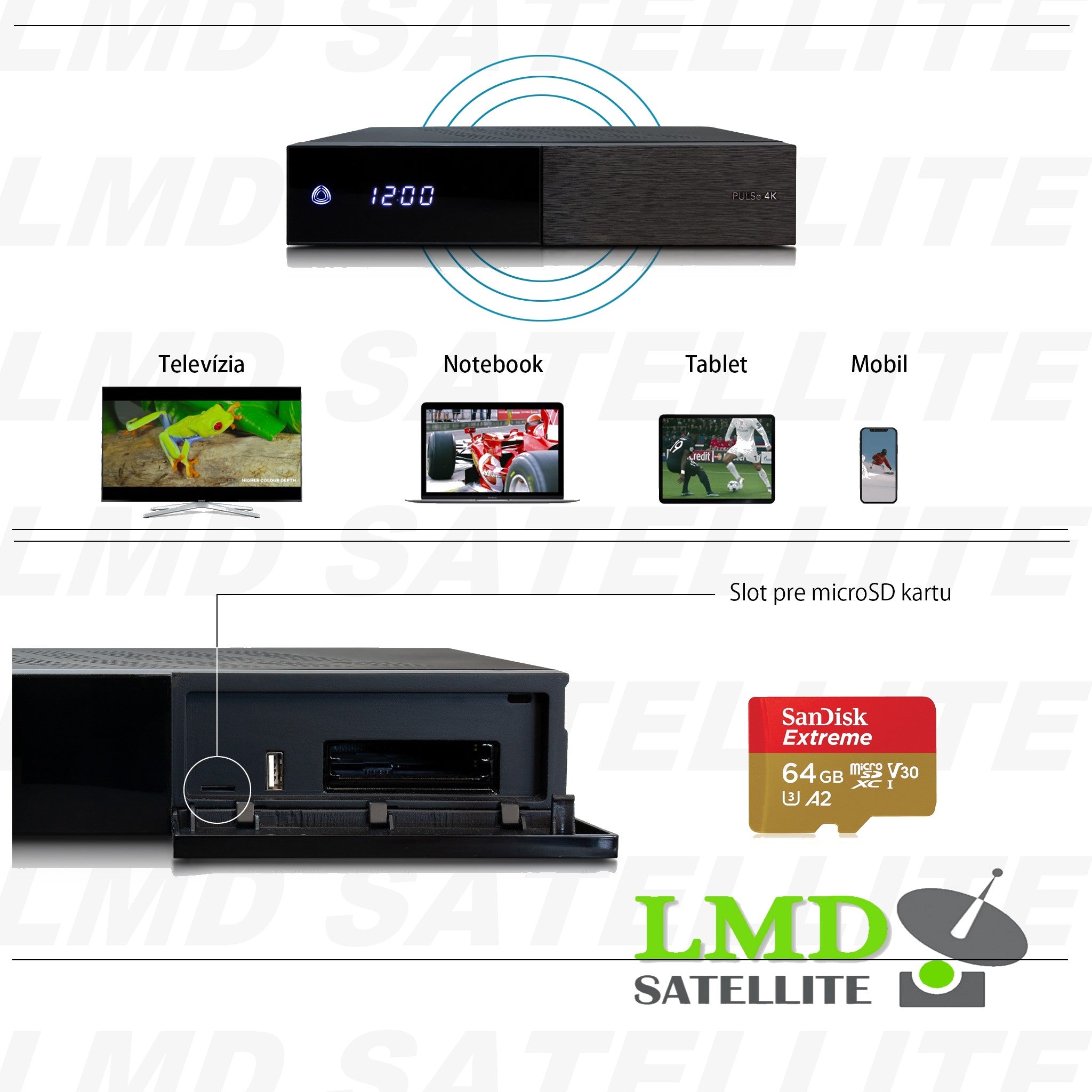

Of course, one PULSe 4K device can ensure the distribution of content for your television. In addition, however, you can watch other TV broadcasts in real time on your other two mobile devices and one computer.
2 x Mobile Device (Multi - Transcoding)
1 x Personal Computer (Web Interface)
1 x Television (HDMI)

In addition to storing recordings on the internal 2.5 "HDD, you can also choose a more elegant solution, which is a microSD card . The microSD card fully replaces the functions of the internal HDD and mainly eliminates unwanted sounds of the standard 2.5" HDD.

You can also control the PULS 4K receiver via your mobile phone. You can also use your mobile phone or tablet as a remote control. You can see on your phone what is currently being broadcast on the TV and set remotely what your PULS should do. Need to record a movie or your favorite TV show? With a mobile phone, you have it in a few clicks. All recordings will be stored on your PULS 4K, and you can view them on your mobile phone or tablet at any time when you need them. If you have a recognized TV, but need to move it somewhere else, there is nothing easier than moving a TV broadcast to your mobile device.

We recommend the dreamDroid application for Android devices  .

 We recommend e2Remote Lite for Apple devices  .

It can also connect an external WiFi antenna to the receiver, which will provide you with a wireless internet connection.

Technical specification

• 1x DVB-S2X tuner + 1x DVB-T2 / C tuner
• Processor: QUAD CORE, 15,000 DMIPS
• Flash: 8GB EMMC
• RAM: 2GB DDR4
• 1x career reader
• 2x CI slot
• 1x HDMI
• 1x microSD card slot
• 2x USB 2.0
• Video decoding: 4K x 2K@60 10-bit decoding, 1920 x 1080, 1280 x 720, 720 x 480, 720 x 576
• HDR/HDR10 a HLG
• Transcoding: Multi transcoding and Multiroom support
• Display: LED 7-segment
• Ethernet RJ45: 10/100 Mbps
• Drawer system for internal 2.5 "HDD
• S / PDIF optical digital audio output
• IR extender for IR eye (included in the package)
• Video Format: 4:3 Letter Box, 4:3 Pan Scan, 16:9
• Video Decoding: MPEG1, MPEG2, H264, H265 HEVC, CAVS, VP8, VP9
• Audio Decoding: MPEG-1 layer I/II, PCB downmix, IEC958 SPDIF Left / Right / Stereo / Mono
