AB IPBox TWO 2x DVB-S2X UHD 4K Android HDR10 Wifi Bluetooth APPS OTT-IPTV

No review yet. Write Review
Regular price
£149.00
Regular price
Sale price
£149.00

Vendor : AB

Product Type : 4K Recievers

Sku : AB IPBOX TWO

Hurry! Only
3
units left in stock!

Description

AB IPBox TWO 2x DVB-S2X UHD 4K Android HDR10 Wifi Bluetooth APPS OTT-IPTV

AB IPBox TWO (2x DVB-S2X tuner) is a receiver with UHD (4K) resolution and ANDROID operating system .

In addition to the DVB part, which is used to watch the programs of your satellite TV provider, you can also use the Android interface to watch content through your favorite applications such as YouTube, Antik, etc. The Android operating system offers a wider range of uses for the satellite receiver than other operating systems.

Watch live satellite broadcasts (DVB) or OTT-IPTV broadcasts from Internet sources (ANDROID).


Beautiful 4K images are a matter of course, as are HDR10 and HLG image standards. A quad-core processor with 2GByte DDR4 SDRAM memory and 16GB eMMC internal memory will take care of the performance. The receiver contains a built-in 2x DVB-S2X tuner, a built-in WiFi Dual band 2.4GHz / 5GHz and Bluetooth 4.0.

  • 4K Resolution (UHD)
  • 2x DVB-S2X tuner
  • Processor: QUAD CORE
  • Flash: 16GB eMMC
    RAM: 2GB DDR4
  • OS: Android 8.0 Oreo
  • 1x card reader
  • TFT LCD display
  • 1x HDMI
  • 1x microSD card slot (possible recording to microSD card)
  • 1x USB 3.0 + 1x USB 2.0
  • Built-in WiFi
  • Built-in Bluetooth
  • Video Format: 4: 3, 16: 9, Letter Box, Pan & Scan
  • Video Resolution: 10bit, Up to 3840 x 2160 @ 60fps, HDR10 Support
  • Ethernet RJ45: 10/100 Mbps
  • S/PDIF optical digital audio output
  • Video Format: 4: 3 Letter Box, 4: 3 Pan Scan, 16: 9
  • Video Decoding: ITU-T H.265 / HEVC & H.264, ISO / IEC 13818-2 MPEG-2, AVS & AVS +, VP6, VP8, VP9
  • Audio Decoding: MPEG I&II, MP3, Dolby Digital Plus, AAC-LC, HE-AAC V1 / V2
  • Audio Mode: Stereo / Mono / Left / Right / Exchange
  • Dimensions: 170mm X 100mm X 46mm

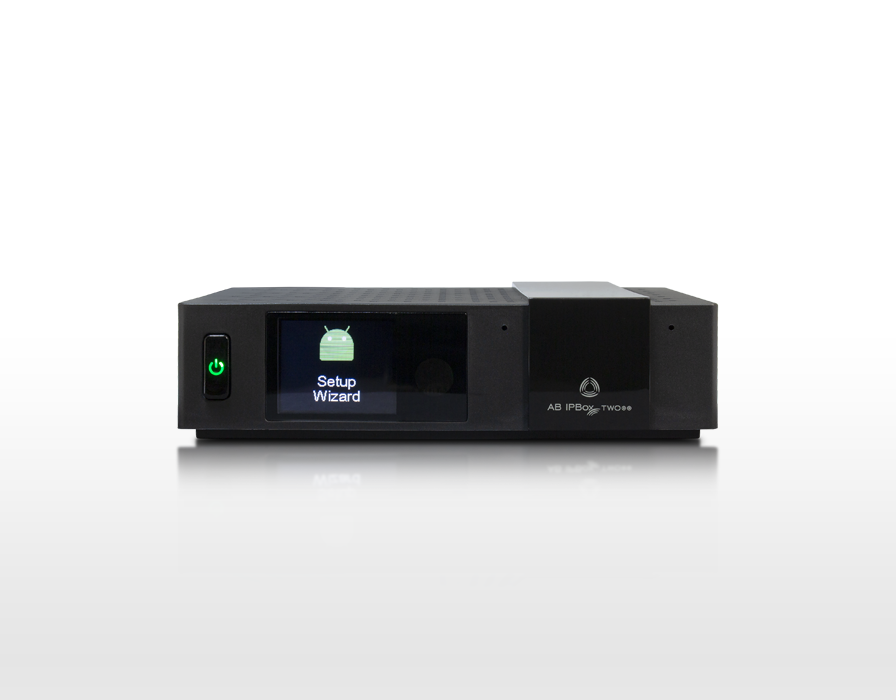

On the front panel  there is an on / off button that signals whether the receiver is on, off or in stand-by mode, a TFT LCD display with graphical display of various information and 2x microphone for voice commands.

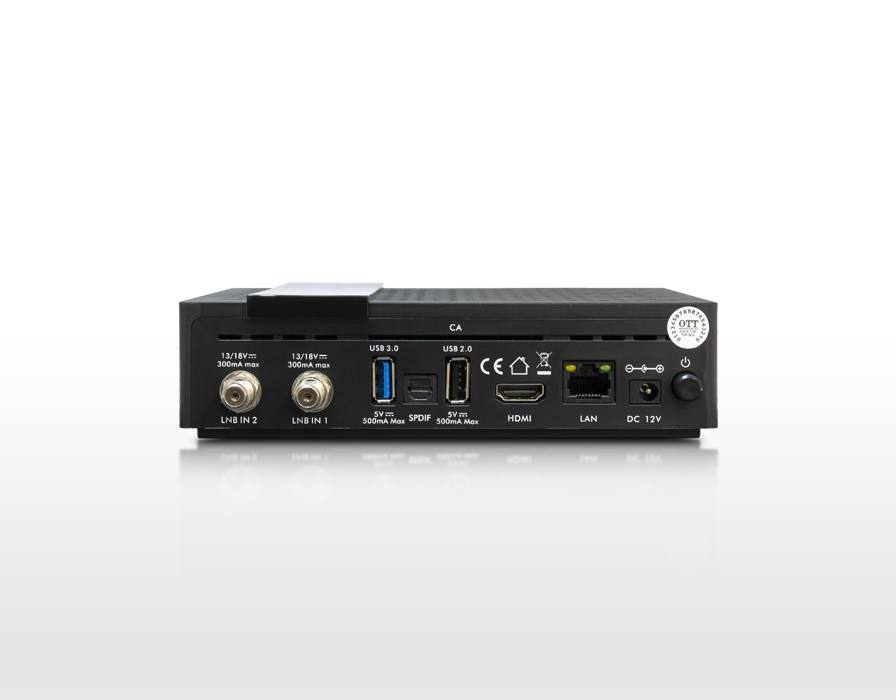

On the rear panel  there are 2x built-in satellite tuner DVB-S2X, 1x slot for card reader, 1x USB 3.0, 1x USB 2.0., S / PDIF optical digital audio output, HDMI, Ethernet RJ45, DC 12V connector for external source and power button on.

On the side of the receiver you will find a microSD card slot that you can use to record broadcasts or play files.

You can also save recordings on an external USB HDD. However, recording to a MicroSD card is a more elegant solution, as it fully replaces the functions of the external HDD and mainly eliminates the unwanted sounds of standard external HDDs.
Calculation of microSD card capacity utilization:
- on a 32GB microSD card you will store approx. 13 hours of recordings
- on a 64GB microSD card you will store approx. 25 hours of recordings
- on a 128GB microSD card you will store approx. 50 hours of recordings

* The data is approximate depending on the bitrate of the program you recorded from, because each program has a different bitrate.

The receiver can simultaneously record any two programs (without transponder restrictions) and the third can watch (with the transponder restrictions of the programs you are recording) or record one program and the others at any time without transponder restrictions.

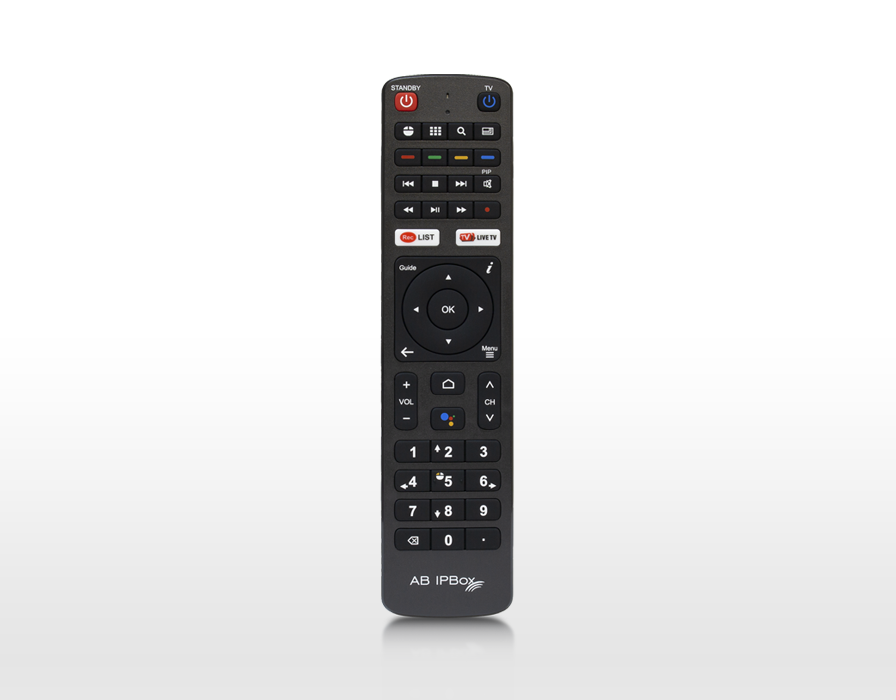

The Bluetooth remote control  contains all the necessary buttons that are logically arranged.
Here you will find, for example, the buttons:
- switching the TV on and off
- direct access to the DVB section (LIVE TV) for watching live broadcasts via satellite
- virtual mouse for convenient control
- direct access to applications
- voice assistant with microphone

Specification

Technical specification

Operation system

OS Android

System Resources

CPU ARM Cortex A53, Quad core 64bit
GPU High-performance multi-core Mali T720
Storage Memory 16GB eMMC 5.0
System Memory 2 GByte, DDR4 SDRAM

MPEG Transport Stream A/V Decoding

Transport Stream ITU-T H.265/HEVC & H.264, ISO/IEC 13818-2 MPEG-2
AVS&AVS+, VP6, VP8, VP9
Profile Level ITU-T H.265 Main 10 Profile@L5.1 high-tier
MPEG-2 MP@HL
Input Rate Max. 160Mbit/s (H.265)
Video Format 4:3, 16:9, Letter Box, Pan& Scan
Video Resolution 10bit, Up to 3840 x 2160@ 60fps, HDR10 Support, HLG
Audio Decoding MPEG I& II,MP3,Dolby Digital Plus,AAC-LC,HE-AAC V1/V2
Audio Mode Stereo/M ono/Left/Right/Exchange

Rear Panel

Power Switch Push/Pull Type
DC Power Jack 12Vdc / 2A
Smart card slot 1 smart card on rear
Tuner 1 DVB-S2X
Tuner 2 DVB-S2X
Smart Card 1 x
RJ-45 Connector 10/100Mbps
HDM I Connector Version 2.0a, HDCP 2.2, HDCP1.4
SPDIF Optical
USB3.0 X 1
USB2.0 X 1
USB3.0 and 2.0 Host Interface
USB Memory Stick&HDD, HUB Support
FAT, NTFS Support
5Vdc, 500mA Max.

Side Panel

Micro SD Card 1 x

On board

Bluetooth Internal Antenna Yes. 4.0 + EDR
Wifi Antenna Internal Antenna IEEE 802. 11b/g/n/ac, 2.4GHz/5GHz Dual band(2T/2R)

Tuner 1 DVB-S2X

Input Connector F-Type Female(Si-Labs SI2166) Support S2X
Frequency Range 950M Hz to 2150M Hz
Signal Level -25 to -70dBm
LNB Power & Polarisation Vertical : +13.5V ± 0.5V Max 4500mA
22KHz Tone Horizontal : +18.5V ± 0.5V Max 500mA
Frequency : 22KHz ± 4KHz, 0.6Vp-±p0.2Vp-p
Diseqc Control Version 1.0, 1.2, USALS Compatible
Demodulation QPSK & 8PSK
Input Symbol Rate DVB-S : 1 ~ 55M bps / DVB-S2 : 1 ~ 45Mbps

Tuner 2 DVB-S2X

Input Connector F-Type Female(Si-Labs SI2166) Support S2X
Frequency Range 950M Hz to 2150M Hz
Signal Level -25 to -70dBm
LNB Power & Polarisation Vertical : +13.5V ± 0.5V Max 4500mA
22KHz Tone Horizontal : +18.5V ± 0.5V Max 500mA
Frequency : 22KHz ± 4KHz, 0.6Vp-±p0.2Vp-p
Diseqc Control Version 1.0, 1.2, USALS Compatible
Demodulation QPSK & 8PSK
Input Symbol Rate DVB-S : 1 ~ 55M bps / DVB-S2 : 1 ~ 45Mbps

Front Panel

TFT LCD 1.77 inch TFT LCD
Power LED Red/Green Dual Color light emitting diode
Buttons 1 x Power Button
Microphone 2 x Microphones Hole

Power Supply

Input Voltage AC 90 ~ 250V, 50/60HZ
Output Voltage 12V / 2A

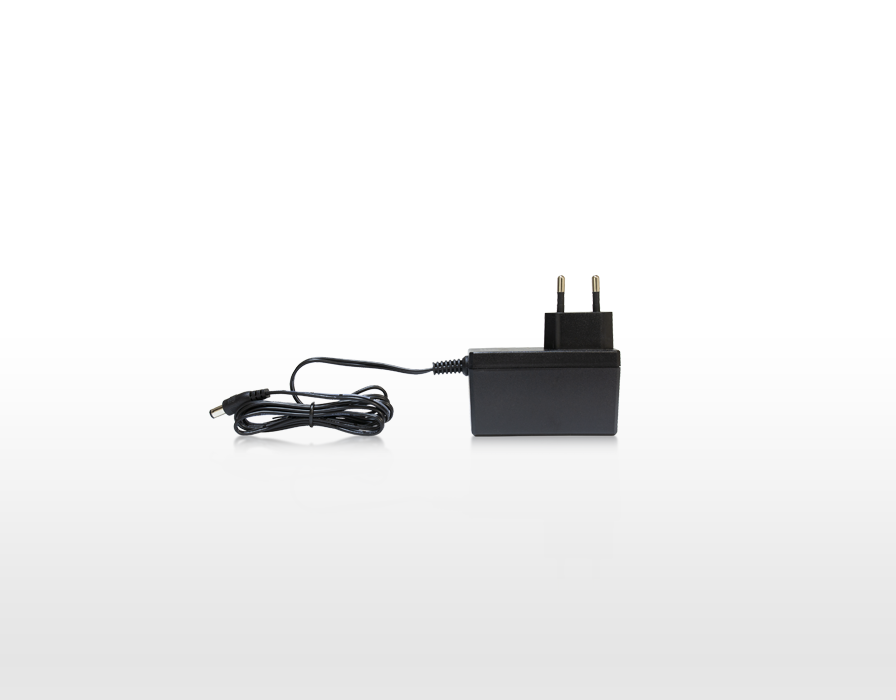

Type External AC to DC Adaptor
Power Consumption(Watt)  Stand-by Mode : Under 0.5W

Physical Dimension

Size(WXDXH) 170mm X 100mm X 46mm
Net Weight 0.7 Kg
Operating Temperature 0 ~ 45 °C
Storage Temperature -10 ~ 70 ℃
